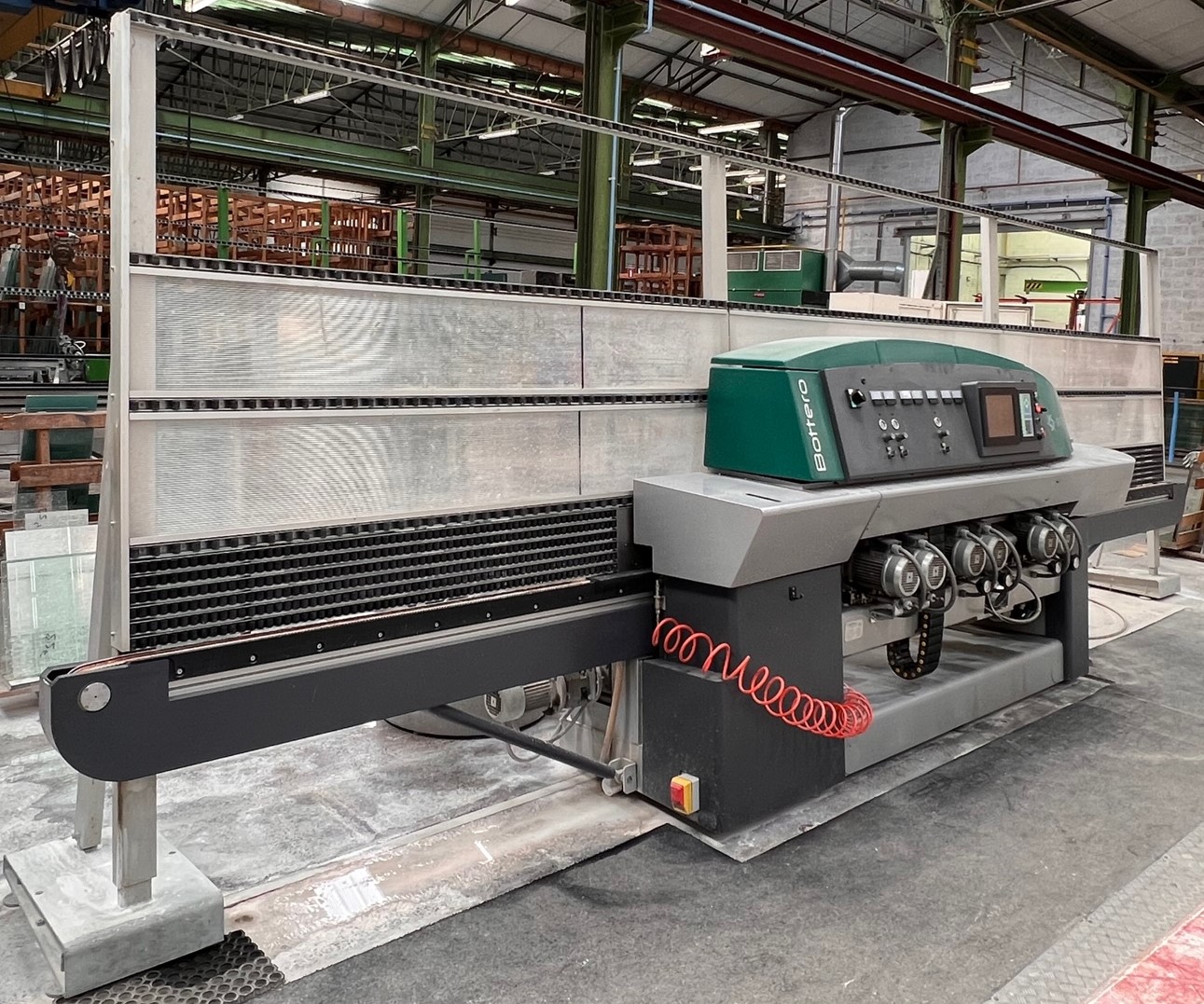

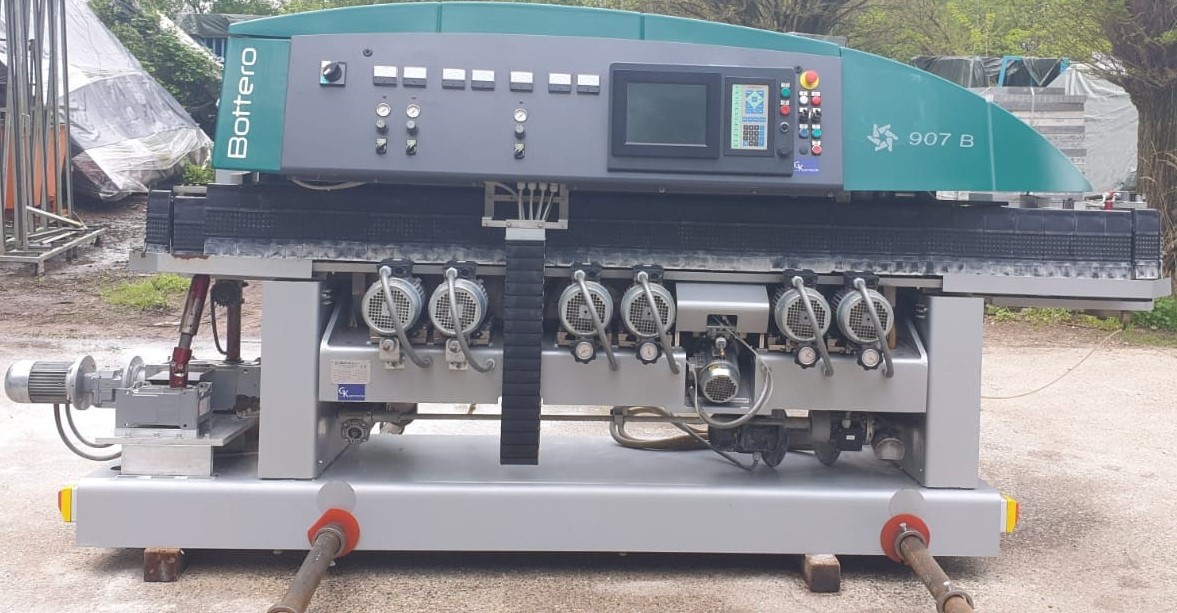

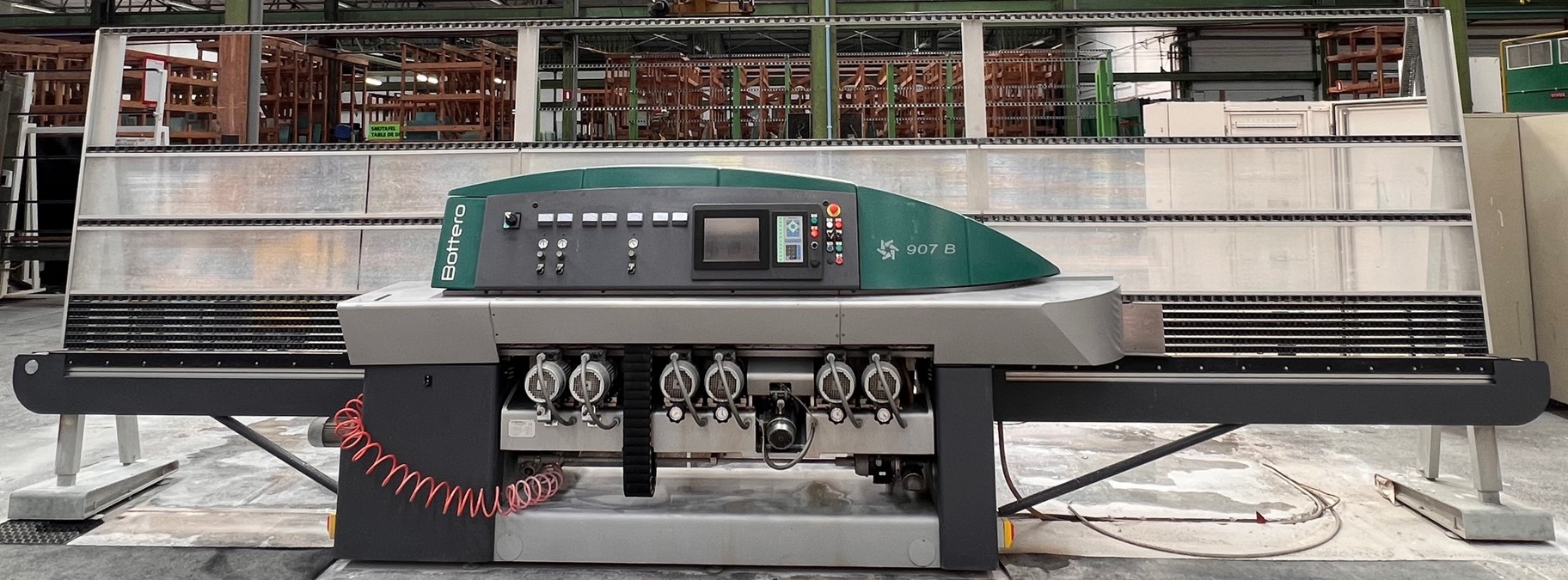

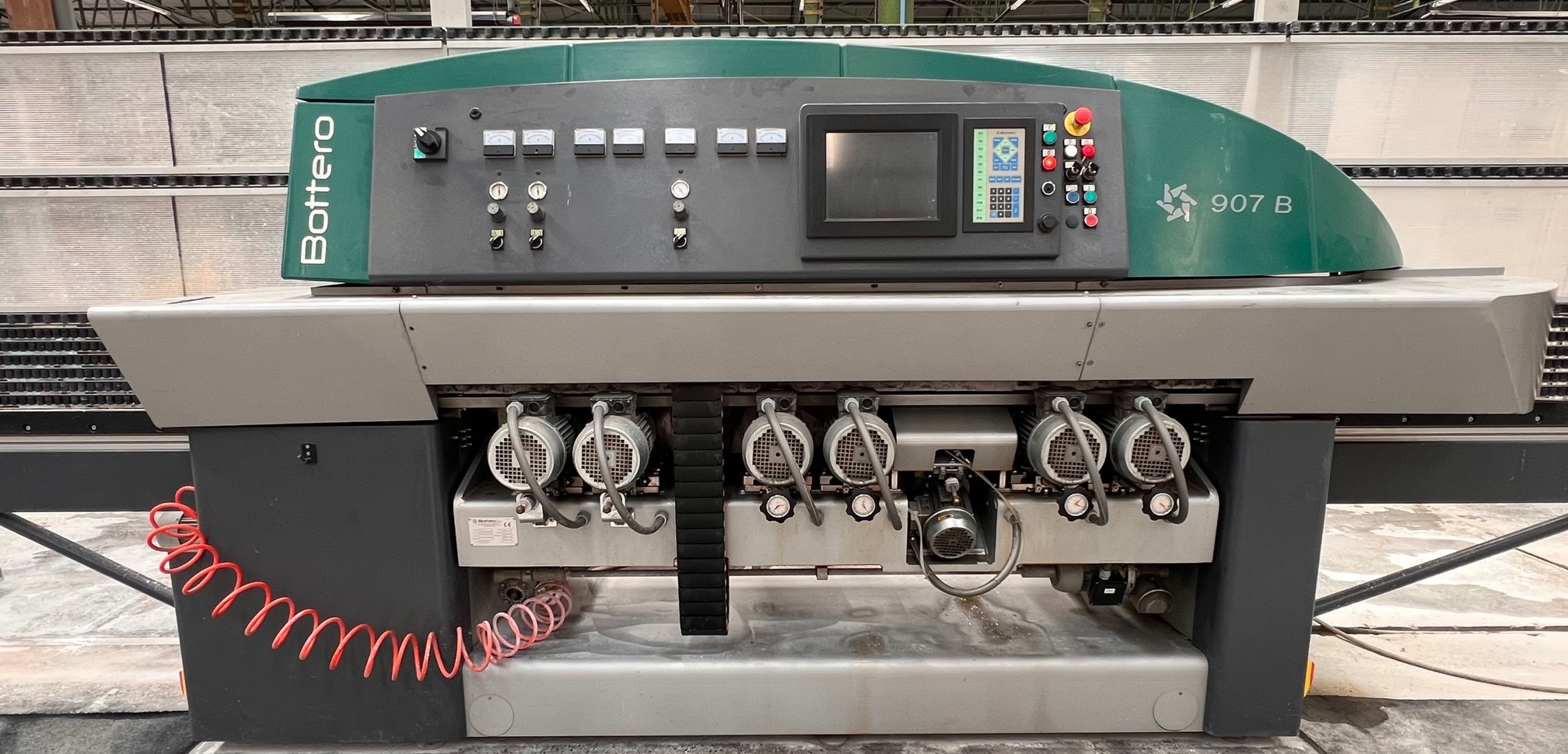

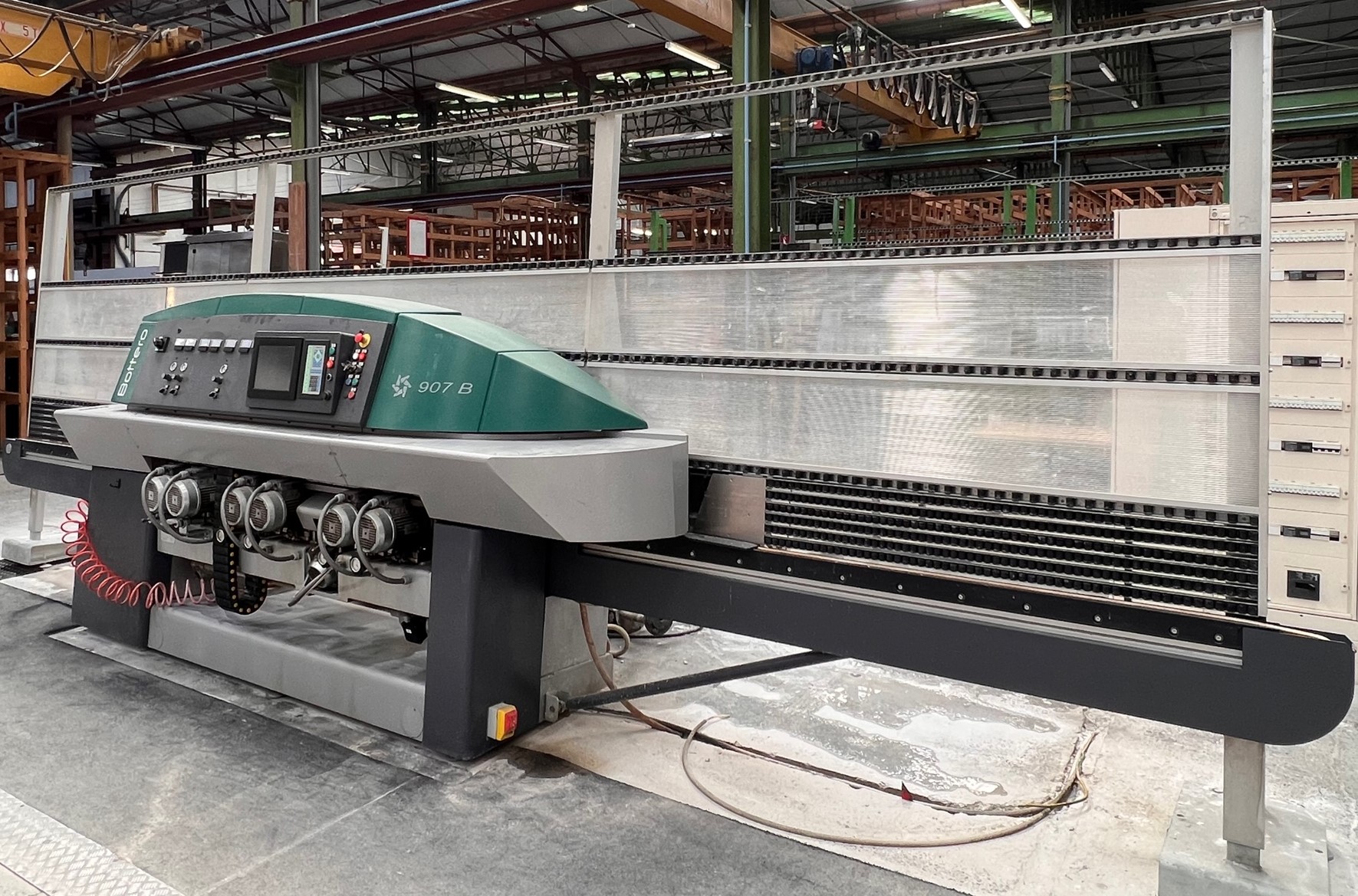

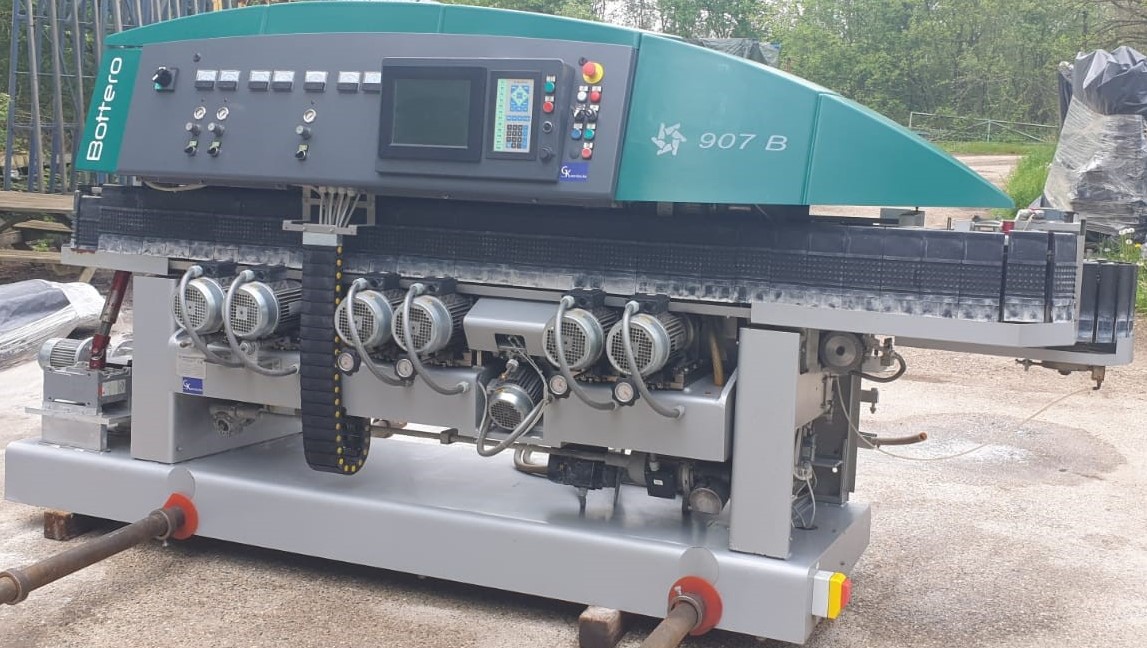

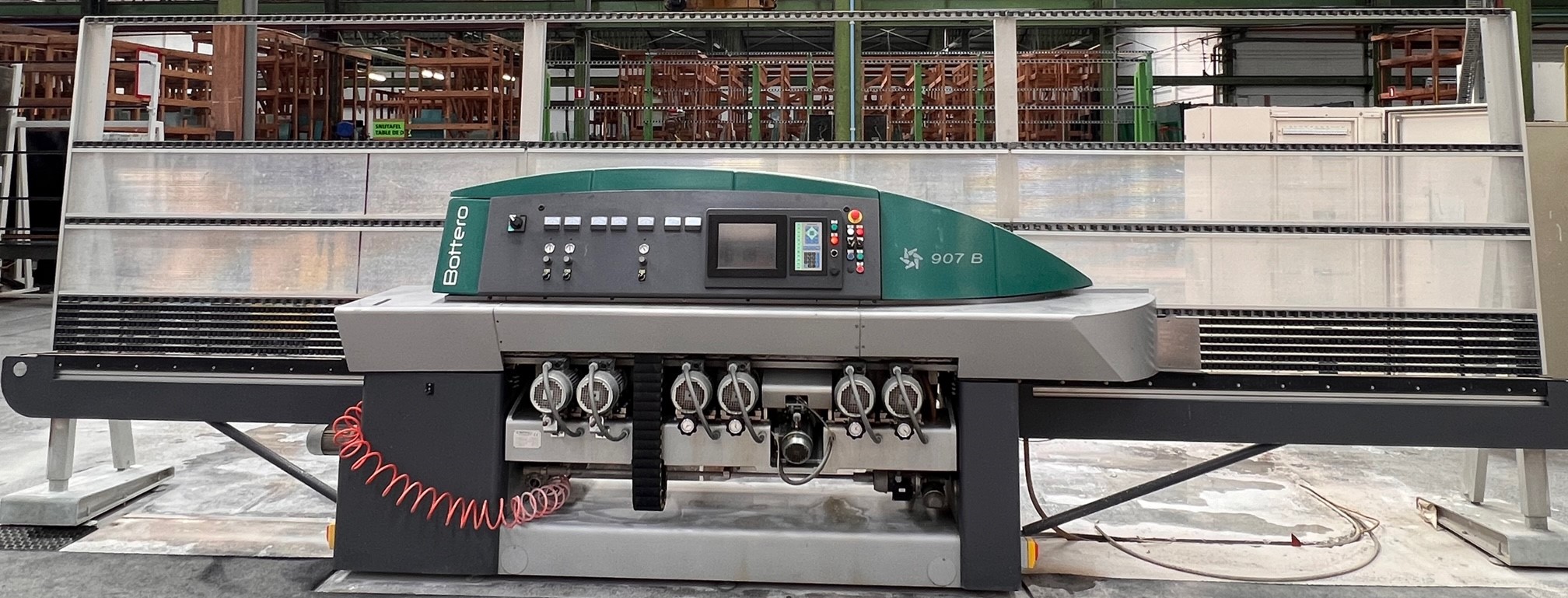

FAC-005 Bottero 907B straight line beveller

Category : Bevelling - Straight line beveller

Technical specifications

Make : Bottero

Type : 907 B

Year : 2012

Conditions : Clean - Goodworking condition - As it is

Serial Nr : GG907B-19894

Capacity : 380V-50Hz-23,5KVA-37A-3600Kg

Description :

The 907 B is able to produce a bevel up to 50mm in height. In a single pass, the machine produces the bevel and an arris on the front edge of the machine.

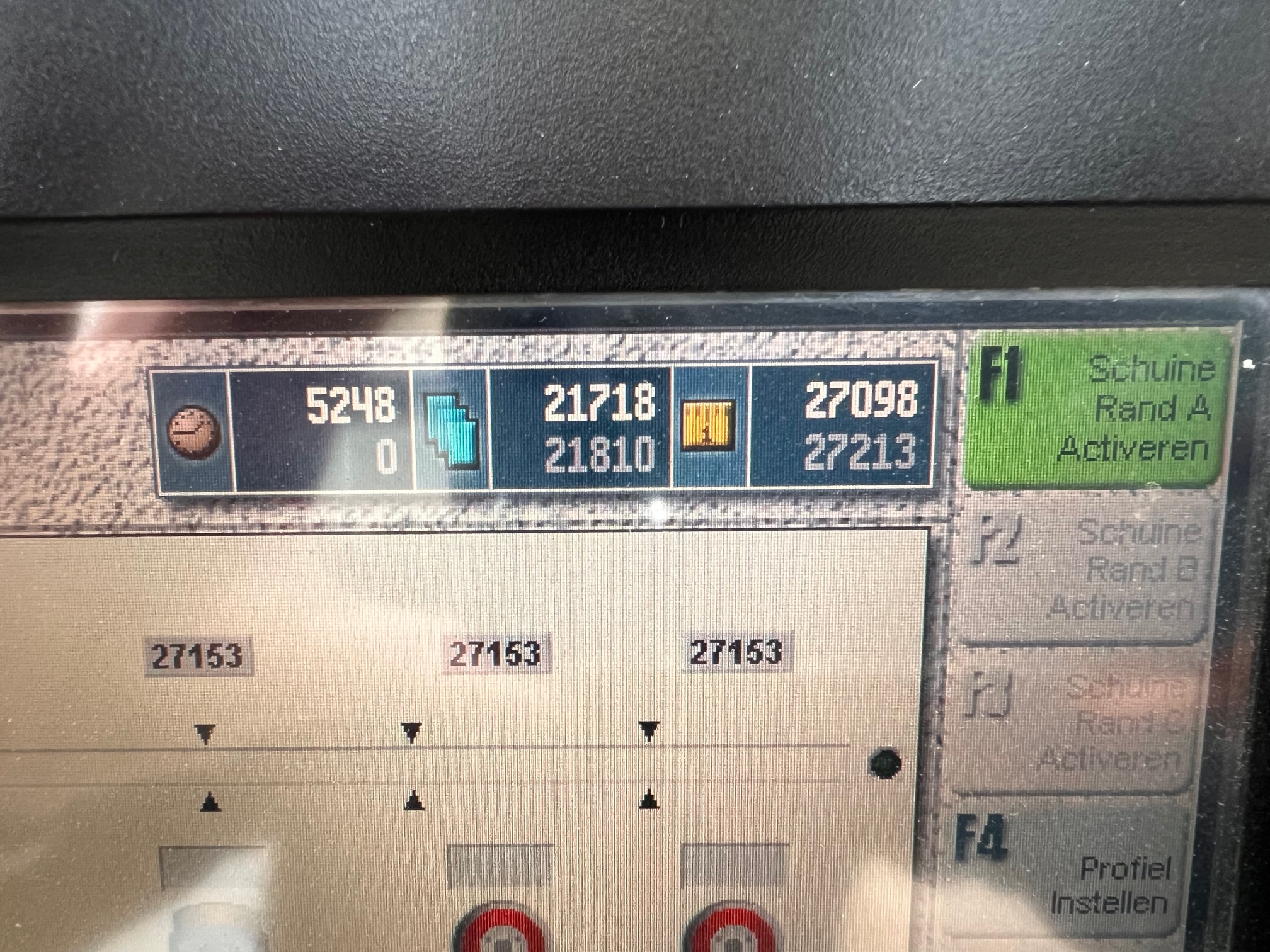

Less then 28000 working meters!

Min size 40x40mm; glass thickness: 3-30mm; Speed: 0,4-6m/min; Processing angle: 3-45°; Max corner edge dim.:40mm
