STO-044 Semi-auto classifier 26 Pos

Category : Handling storage


Technical specifications

Make : Mistrello

Type : ML33-SL-SB

Year : 2026

Condition : NEW

Serial Nr : na

Capacity : 0,75 KW-230V mono-50Hz

Description :

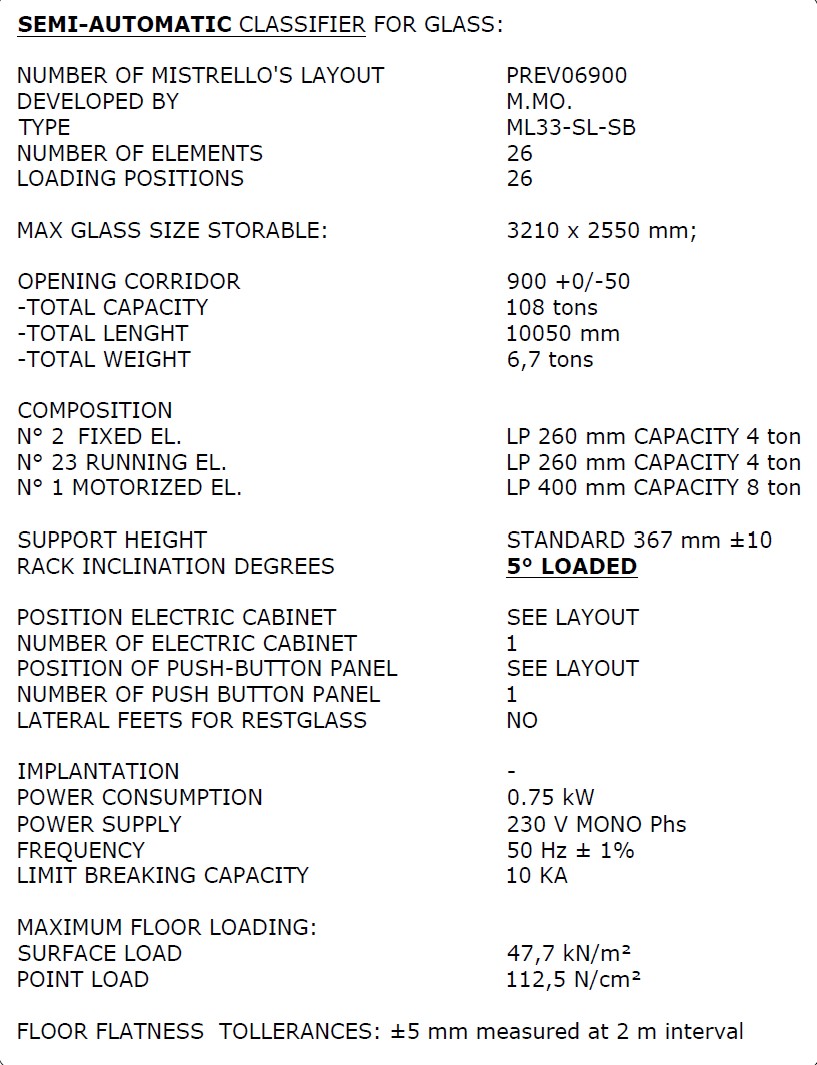

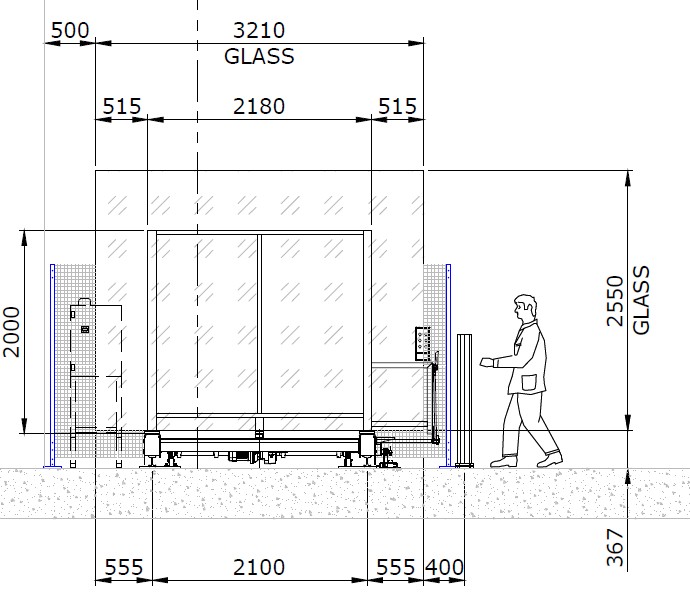

TYPE ML33-SL-SB - LOADING POSITIONS 26 - MAX GLASS SIZE STORABLE: 3210 x 2550 mm

OPENING CORRIDOR 900 +0/-50 - TOTAL CAPACITY 108 tons - TOTAL LENGHT 10050 mm - TOTAL WEIGHT 6,7 tons

N° 2 FIXED EL. LP 260 mm CAPACITY 4 ton -N° 23 RUNNING EL. LP 260 mm CAPACITY 4 ton-N° 1 MOTORIZED EL. LP 400 mm CAPACITY 8 ton

SUPPORT HEIGHT STANDARD 367 mm ±10 RACK INCLINATION DEGREES 5° LOADED
